Annular Air Intake Wood Stove: Keep the Lower Air Path Clear

An annular air intake wood stove needs more than dry fuel to work as intended: its lower air path also needs breathing room. Before lighting a Hillrein Zhengtu stove, take one cold-stove look underneath and around the lower openings. A folded cloth, loose paper, leaves, a soft mat, or a tight stack of gear may look harmless beside a compact cooker, yet it can interfere with the airflow that the fan is trying to direct around the burn zone.

This is not a claim that the stove needs a special stand or a substitute for its normal setup instructions. It is a simple, repeatable pre-cook habit: put the stove on a firm, level, heat-suitable outdoor surface; leave its visible openings unobstructed; and make sure nothing can slide against the body during the cook. Use the Zhengtu outdoors—in a backyard, patio, outdoor kitchen, campsite, or another properly ventilated, locally compliant place—not in an enclosed space.

Why an annular air intake wood stove needs clear lower space

The Hillrein Zhengtu is a fan-assisted wood gasifier cooking stove. Its fan-forced oxygen is routed around the combustion area through an annular intake, helping the heated chamber burn wood gas more completely. Once the burn stabilizes, that can mean strong useful heat under the pot with less visible smoke. The fan cannot make damp wood clean, and it cannot compensate for an air path that has been crowded at the setup stage.

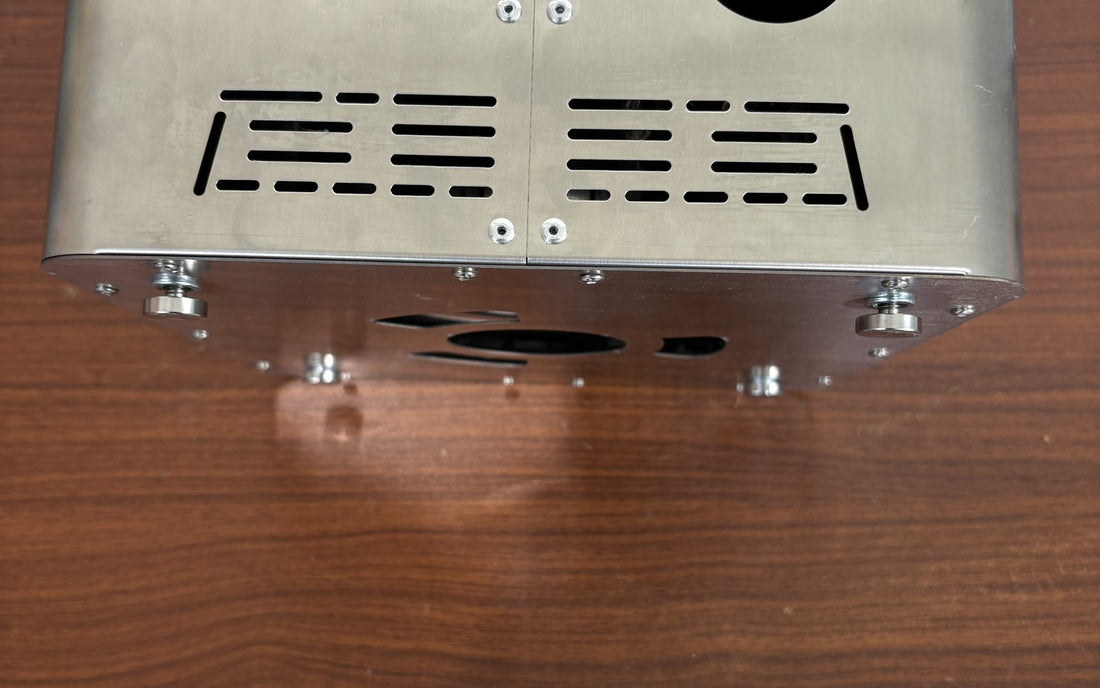

The photograph above is a cold, underside view of the Zhengtu body, showing the lower openings and adjustable feet. Treat it as a reminder to inspect, not as a disassembly or load-rating guide. Do not poke tools into openings, remove parts during a cook, or change the stove's feet while it is hot.

A 30-second lower air-path check

1. Choose the surface first. Set the cold stove on a stable, level, heat-suitable surface with clear space around it. Keep combustible clutter, loose packaging, and fuel bags away from the body.
2. Look low, not only at the pot. Confirm that cloth, paper, leaves, ash piles, or a table edge are not pressed against the lower or side openings. The adjustable feet should sit normally on the selected surface.
3. Plan the movement path. Put the next dry wood pieces and cooking tools within reach but outside the stove's immediate heat zone. You should not need to slide or lift the operating stove to reach them.
4. Recheck after placement. If a windbreak, tray, or other item is added, take another quick look before ignition. Keep enough open space that it does not become an accidental air-path blocker.

Then light with dry kindling and small dry wood pieces around 10 cm long. Do not overpack the first load. Let the chamber heat up, support the first flame with a lower-to-medium fan setting, and increase fan gradually after the fire is established. Startup and refueling can still show visible smoke; lower-smoke performance comes after fuel, temperature, and airflow settle into the same rhythm.

Watch the cookware response during the cook

For wok or fast-pan work, a fuller but breathable wood load and about 80% fan is usually Zhengtu's practical high-heat sweet spot. The visible flame can look lower as fan speed rises while heat under the pan becomes stronger, so judge the result by the pan and food rather than flame height alone. For soup, porridge, or a slower finish, move toward about 20% fan with one or two short dry pieces of wood.

Do not leave the stove unattended while it is operating. If the setup needs to be moved or the lower area needs attention, let the stove cool completely first. In steady suitable use, the Zhengtu can use less than about 1 kg of dry wood per hour, though fuel dryness, cookware, wind, and the meal all matter. Keeping the air path clear is not a fuel-consumption promise; it is one of the small setup choices that makes cooking control more predictable.

See the Hillrein Zhengtu stove for the fan-assisted wood gasifier platform behind this airflow routine. A calm, open setup lets the cook focus on the pot instead of rescuing the fire.
