Fan-Assisted Wood Gasifier Stove: Keep the Fan Face Clear

A fan-assisted wood gasifier stove needs its fan to have room to do its job. Before a Zhengtu cook, people often stage a bag, towel, spare fuel, or cookware close to the stove for convenience. The useful habit is to check the fan face as part of that setup: keep it uncovered and leave the fan-side area open. This is not a complicated maintenance ritual. It is a practical way to avoid obstructing the controlled airflow that helps the stove turn a small wood fire into a workable cooking fire.

The Hillrein Zhengtu stove uses fan-forced oxygen and annular air intake around the burn zone. Once the chamber is hot, that airflow helps wood gas burn more completely, giving strong heat under the pot with less visible smoke than a cold or poorly supplied fire. The fan face is only one part of the whole airflow system, so do not treat a clear fan as a substitute for dry fuel, a warm chamber, or a sensible fire load. It is simply an easy check that belongs in every outdoor cooking setup.

Fan-assisted wood gasifier stove setup starts with a clear fan face

With the stove completely cool, place it on a firm, heat-suitable outdoor surface where the fan face is not pressed against a bag, wall, cloth, or piled fuel. Arrange your dry wood around 10 cm long nearby rather than against the stove. Then make sure a pot handle, apron, or loose cover will not fall across the fan area during cooking. This is a cold-stove setup check; do not reach around hot parts to rearrange the fan zone in the middle of a live fire.

At ignition, keep the first load loose and modest. Start with low to medium fan assistance, let the chamber heat, and increase gradually after the fire is established. For a stir-fry or other fast pan work, a fuller breathable wood load and about 80% fan are usually a practical high-heat combination. For soup, porridge, or a slower simmer, around 20% fan with one or two short dry pieces is usually the calmer starting point. The dial is a cooking control, not a command to use maximum power all the time.

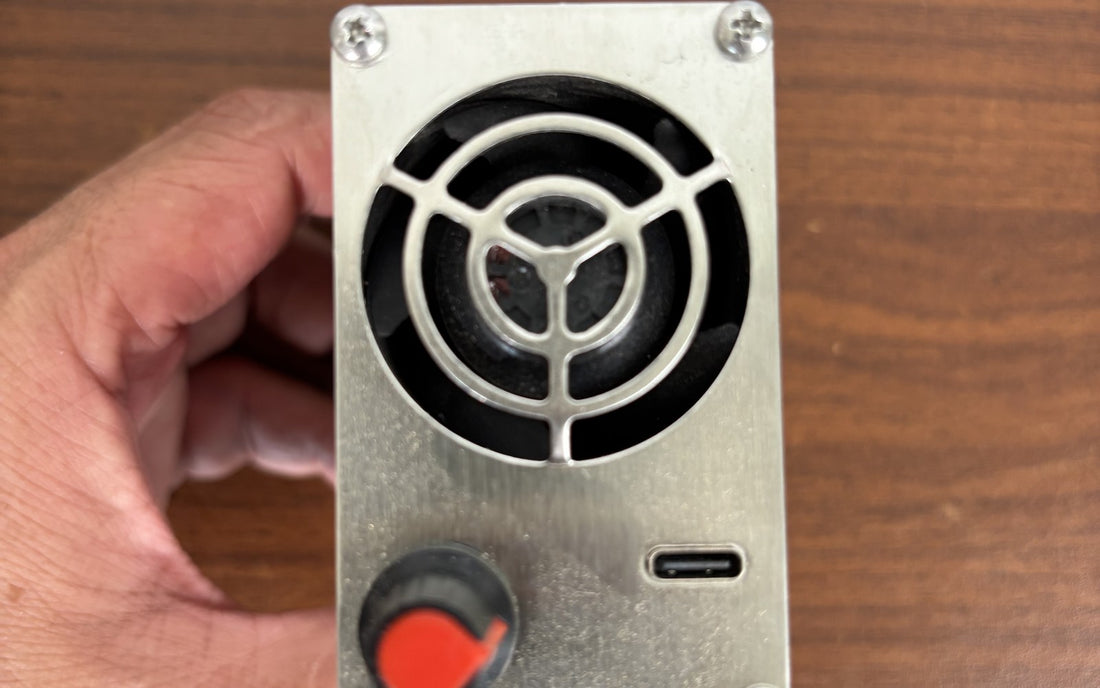

The photograph is a real Zhengtu fan-module close-up showing the protective fan face, control dial, and USB-C charging port. It is a setup illustration, not a disassembly instruction, electrical specification, or promise of runtime.

What a clear fan zone helps you notice

• Whether you have left enough room to adjust the dial before the pot and fire are hot.
• Whether fuel, cloth, or packed gear is crowding the fan-side operating area.
• Whether a weak cooking response is really an airflow issue—or instead damp wood, an overpacked first fire, a cold chamber, or a heavy food load.
• Whether the next change should be gradual fan adjustment, a small dry refill, or simply more time for the chamber to stabilize.

Visible smoke can still appear during startup and refueling. Zhengtu's cleaner burn is strongest after dry fuel, chamber temperature, and airflow have settled together. Do not promise yourself a smoke-free moment just because the fan face is clear, and do not use the stove in an enclosed space. Choose a backyard, patio, outdoor kitchen, camping area, or another properly ventilated, locally compliant setting.

To see the stove designed around controlled airflow and real cooking, visit the Hillrein fan-assisted wood gasifier stove. A clear fan face is a small setup detail that keeps the rest of the cooking controls honest.
