Fan-Assisted Wood Gasifier Stove: Do the Fan Check While Cold

A fan problem is easiest to notice before there is a live fire, a hot pot, and dinner waiting. That is why a fan-assisted wood gasifier stove deserves a brief cold preflight. For the Hillrein Zhengtu, this is not a repair routine or a promise that the fan alone will create a clean burn. It is a practical way to make sure the controls you plan to use are present, powered, and behaving normally before lighting.

Do the check outdoors or in another safe, dry place with the stove completely cool and empty. Keep combustible material clear of the work area. If anything appears damaged, unusually loose, wet, or unsafe, stop and seek product support rather than lighting the stove to “test” it.

What to check on a fan-assisted wood gasifier stove

1. Look first: confirm that the fan module, its guard, and the control area are clean and free of loose packing material or debris.
2. Confirm power: use the intended power arrangement and verify that the fan can be switched on while the stove is cold. Do not assume that a connected cable proves the fan is operating.
3. Listen and feel at a distance: a running fan should produce an evident airflow response. Do not put fingers, tools, ash, or fuel into the fan openings.
4. Move the dial gradually: check that the setting changes deliberately rather than treating the control as an on/off substitute for good fuel and a hot chamber.
5. Set a starting reference: return the dial to a conservative start position before building the fire, then increase it gradually after the chamber warms.

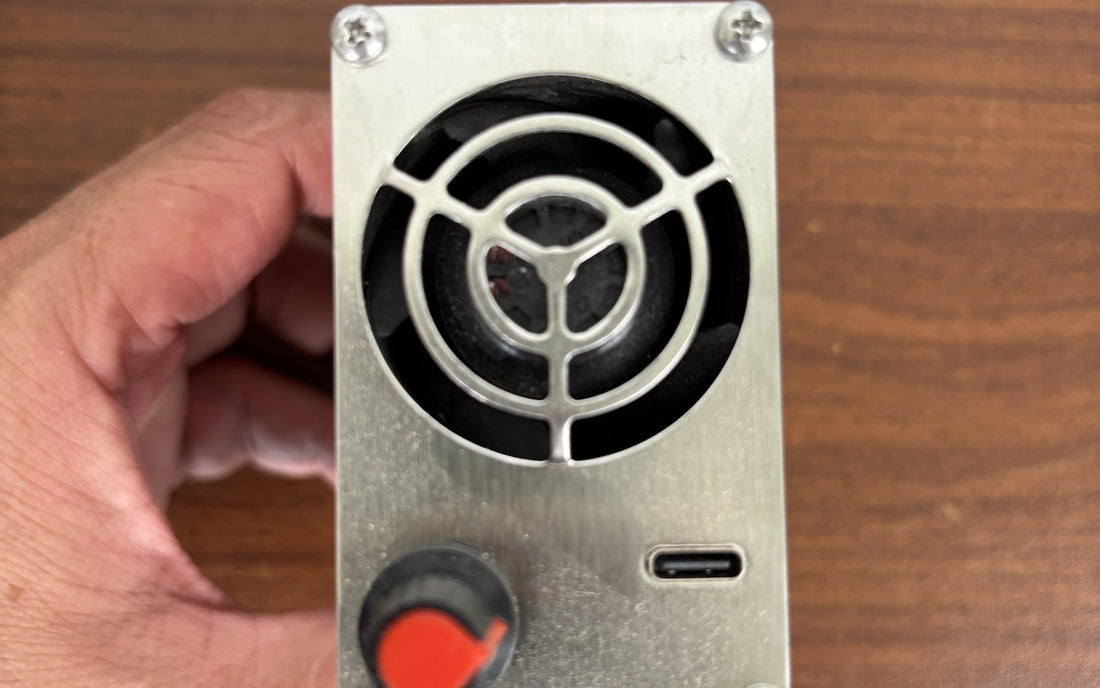

The photograph shows the Zhengtu fan module, its control, and charging port during a cold inspection. It does not show a live-fire setting, charging procedure, or proof of a particular output level.

The fan helps an established fire; it does not replace one

Zhengtu uses fan-forced oxygen and annular air intake to support gasification combustion. Once dry fuel is burning and the chamber has heated up, that airflow can help burn much of the wood gas that might otherwise appear as smoke. The useful result is strong heat under cookware and lower visible smoke after the burn stabilizes.

At startup, however, a fan cannot turn damp, oversized, or tightly packed fuel into a settled gasification burn. Use dry small wood around 10 cm long. Build a breathable first load rather than overpacking it, light it safely, let the chamber warm, and raise the fan gradually. Some visible smoke during ignition and refueling is normal; it is not a reason to immediately run the fan at maximum.

Choose the setting for the cooking job

For a wok or other fast, high-heat cooking step, a fuller working wood load and around 80% fan is usually the practical starting point. The 100% setting is available, but it consumes wood faster. For a soup, porridge, or slower established cook, around 20% fan with one to two short dry pieces is usually more appropriate. Watch the cookware and food, then make one adjustment at a time.

With Zhengtu's annular oxygen intake, a higher fan setting can make the visible flame look lower while making the heat under the pot stronger. That is another reason to perform the cold control check separately from judging live cooking heat. A clear fan response before lighting does not tell you what the right setting will be for every dish.

Turn the check into a repeatable start

Keep the same sequence each time: cold visual check, power and airflow check, dry wood prepared, then a gradual startup. It takes little time and leaves your attention free for the important evidence once the fire is live: whether the chamber is hot, the fuel is burning cleanly, and the meal is responding to the heat you selected.

Use the Hillrein Zhengtu stove outdoors, on a stable non-combustible surface, or in another properly ventilated and locally compliant cooking setting. Treat the fan as one part of an attended wood fire, not a safety device or an unattended cooking feature.
